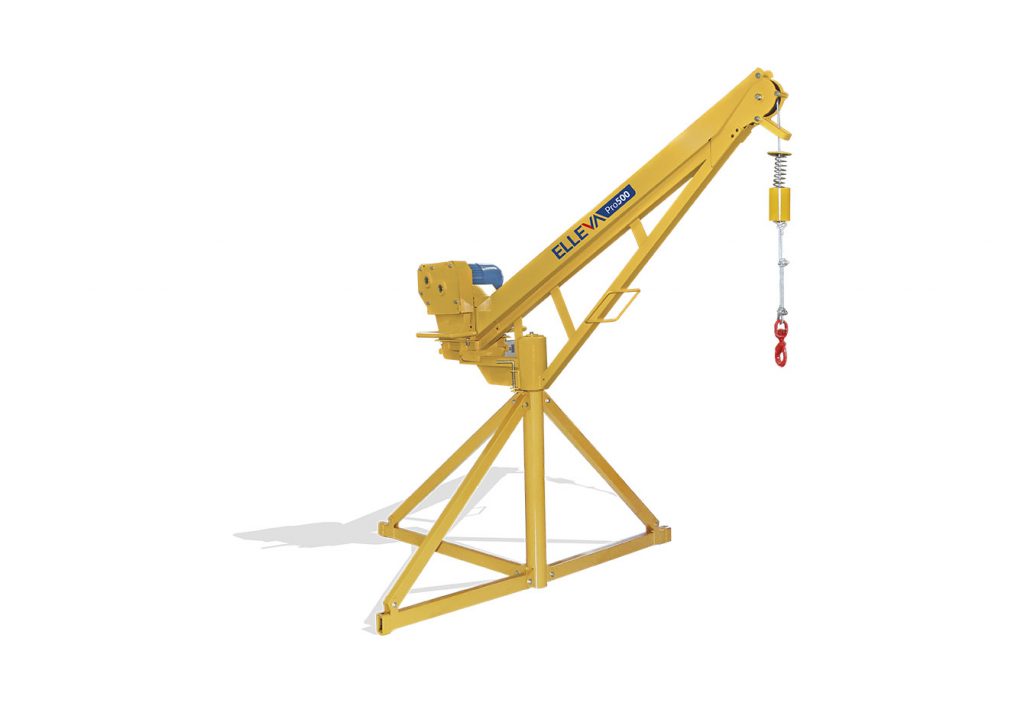

ELLEVA pro 500

Both of the models count with steel cable protection system, stoppage when reaching maximum point system and immediate stoppage system. Due to their structure, made with 03 disassembling modules, this device could easily be transported by two people.

Tenho interesse

Both of the models count with steel cable protection system, stoppage when reaching maximum point system and immediate stoppage system. Due to their structure, made with 03 disassembling
modules, this device could easily be transported by two people.

LIFTING CAPACITY 500 kg
Lifting Speed 25 m/min.
Lifting Height 60 or
Turning Angle 360°
Spear Lenght 1.45 m
Steel Cable Specification Ø 6 mm 17 x 7 AF
Resistance class Non Rotating
Net weight 180 kg
Dimensions L x W x H 1600 x 2750 x 2060 mm
Engine Three Phase - 3.0 hp • brake motor
